PROFILE AND OPTIONS

Panel Insert Profiles

#10
1/4” A-1 MDF Core

#15
3/8” A-1 MDF Core – Not available in all wood species, see table on page 15.

#15
Solid

#20

#30
Extends 1/4” beyond door face

#40

#55

#22

#32

#34

#52

#54

#56

Note:
Drawings Not To Scale

Outside Edge Profiles

#1 Wood only

#2 Wood only

#3 Wood only

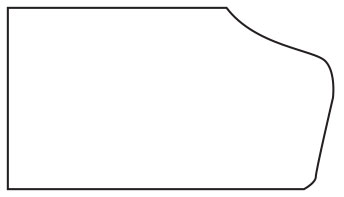

#5 Wood only

#6 Wood & MDF

#7 Wood only

#8 Wood & MDF

#9 Wood only

3/8” Radius

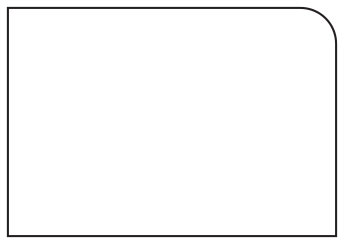

1/8” Radius

Square

Eased

45°

Inside Stile and Rail Profiles

O-G
Mitered or Tongue and Groove

BEAD
Mitered or Tongue and Groove

STEP BEAD
Mitered or Tongue and Groove
(Not recommended for 600 Design)

SQUARE
Available in 100 Design only

30° BEVEL
This profile has a top lip

(Please make a note on your order if you do not want the lip)

60° BEVEL

Mitered Doors

Note: Drawings Not To Scale

Finishing Services

DDD offers a complete range of finishing options to meet your “one stop” needs. Whether it’s doors, boxes, moulding or panel ends, we can clear coat, paint, stain, or apply glazing. Just allow for an extra 7 days from normal delivery times and it will come ready to install. We are glad to take samples if you are matching an existing finish. If you have any questions, call us and we will be glad to help.
