Door Designs for Panel, Slab, and Glass
100
150
200
250
260

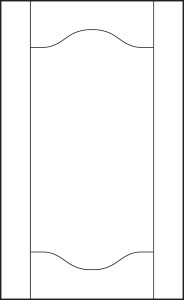

300
600
700
5 Piece Drawer Fronts
5 piece drawer fronts have 1 5/16″ rails and 2 3/8″ stiles standard.
Larger drawer fronts can also have 2 3/8″ rails. Horizontal grain option available.
Arched Door minimum opening
(add rise to minimum panel height)
600 | 2 3/4″ wide | 1″ Rise
200 | 2 3/4″ wide | 1 1/2″ Rise (will not have shoulders until 4 1/2″ width)
260 | 2 3/4″ | 1 3/4″ Rise (will not have shoulders until 5 1/2″ width)
250 | 2 3/4″ | 1 7/8″ Rise (will not have shoulders until 4 1/2″ width)
Door And 5 Piece Drawer Front Specifications
Narrowest width of STILE and RAIL stock is 1 5/16″– Smallest for Hinging 1 3/8″ Stile.
Smallest possible VISIBLE amount of PANEL showing (add stile or rail width for minimum size total)
Slab Door Designs
901
Solid Wood with square corners 3/8″ round over edge
Slab Drawer Fronts with Edge Designs
Slab drawer fronts standard with horizontal grain.
SLAB WITH #20 EDGE
SLAB WITH #40 EDGE
SLAB WITH #55 EDGE
1 Piece MDF Door Designs
Glass Door Designs
200 GLASS
GLASS DOOR
SHOWN AS A 200
STYLE.
AVAILABLE IN
ALL STYLES.
4 LITE
5 LITE
Specify Openings
6 LITE
9 LITE
Specify Openings
SPECIAL
Specify Openings
600 6 Lite
Options for glass door backs:
- Open routed back
- Routed with wood moulding
- 1/8” stop route
- 1/8t” stop route with rubber retainer
